Dilog SL350 Professional Plus Solar PV Test Kit

Dilog SL350 Professional Plus Solar PV Test Kit

Product Code: DILSL350

Price
£325.00 ex. VAT £390.00 inc. VAT

Available In 3-7 Days


Add To Favourites
Detailed Description

The NEW SL350 Professional Plus Solar PV Test Kit is designed to streamline the installation and maintenance of Solar PV Systems. This powerful toolset enables the measurement of Irradiance, temperature, current, and a wide DC Voltage range, including a Voltage Open Circuit (VOC) measurement up to 1000V DC.

Key Applications:

Electrical engineering | Domestic and commercial solar thermal and solar PV installation.

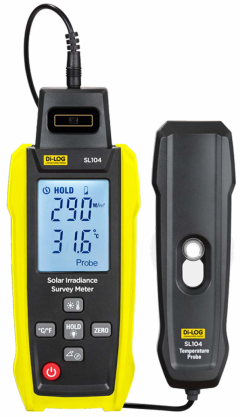

New SL104 Solar Irradiance Survey

At the heart of the SL350 is the NEW SL104 Solar Irradiance Survey Tool. This innovative device measures both solar irradiance and temperature. Users can conveniently measure the PV panel surface temperature with the built-in internal probe or the underside cell temperature with the attached external surface probe as outlined in IEC 62446-1. The SL104 also includes an inbuilt compass inclinometer, allowing for on-site surveys to measure roof pitch angle and proposed array direction with the directional magnetometer.

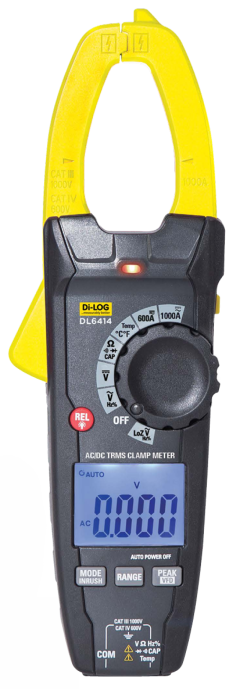

New DL6414 TRMS 1000V DC Clamp

The SL350 is further enhanced by the inclusion of the latest DL6414 TRMS 1000A AC/DC Clamp Meter. This meter offers Voltage Measurement up to 1000V AC/DC, making it ideal for high VOC measurements on large domestic and medium commercial PV systems. Packed with advanced features such as Inrush Current, Low Impedance (LoZ), Variable Frequency Drive (VFD), and an inbuilt LED Flashlight, the DL6414 is equipped to handle the most demanding applications.

SL104 Key Features:

  • Solar Irradiance Measurement to 1400W/m2: Indicating in real time how much solar power is available to convert into electricity.
  • Inbuilt Cell Temperature Sensor: The inbuilt surface probe located on the base of the SL104 offers a quick indication of the surface cell
    temperature.
  • External Cell Temperature Probe: The attachable external probe connects directly to the SL104 and offers a quick indication of the underside cell temperature of the panel.
  • Inbuilt Magnetometer Compass: The inbuilt compass enables you to determine the roof direction to gain an accurate array direction.
  • Roof Pitch Inclinometer: The integrated inclinometer will assist in determining an accurate pitch of the roof angle the array is intended to be mounted on helping calculate the efficiency of the array.

DL6414 Key Features:

  • Accurate AC/DC Current Measurement: Measures up to 1000A with exceptional accuracy, ensuring reliable results.
  • Versatile Voltage Measurement: Handles both AC and DC voltages up to 1000V, making it adaptable to various applications.
  • Compact and Ergonomic Design: The streamlined body and 35mm jaw opening allow for easy handling and access to confined spaces.
  • Comprehensive Measurement Capabilities: Includes additional functions such as LoZ (Low Impedance), Inrush Current, VFD
    (Variable Frequency Drive), and an integrated LED torch.
  • Safety and Protection: Rated CAT IV 600V/CAT III 1000V for safe operation and complete protection across all measurement ranges.

Technical Specification

DL6414 Specifications
Measurement Range Basic Accuracy
AC Current true RMS 0.001A - 400.0A
400.1 - 1000A		 2.5% ± 8 dgts
2.8% ± 8 dgts
DC Current 0.001A - 400.0A
400.1 - 1000A		 2.5% ± 8 dgts
2.8% ± 8 dgts
AC Voltage True RMS 0.001V - 6.000V
6.000V - 60.00V
60.01V - 600.0V
600.1V - 1000V		 1.5% ± 5 dgts
1.5% ± 5 dgts
1.5% ± 5 dgts
1.5% ± 5 dgts
DC Voltage 0.1mV - 600.0mV
600.1mV - 6.000V
6.001V - 60.00V
60.01V - 600.0V
600.1V - 1000V		 0.5% ± 5 dgts
1.5% ± 2 dgts
1.5% ± 2 dgts
1.5% ± 2 dgts
1.5% ± 2 dgts
LoZ 0.00V1 - 6.000V
6.001V - 60.00V
60.01V - 300.0V		 3.0% ± 40 dgts
Resistance 0.1Ω - 600.0Ω
600.1Ω - 6.000kΩ
6.001kΩ - 60.00kΩ
60.01kΩ - 600.0kΩ
600.1kΩ - 6.000MΩ
6.001MΩ - 60.00MΩ		 1.0% ± 4 dgts
1.5% ± 2 dgts
1.5% ± 2 dgts
1.5% ± 2 dgts
2.5% ± 3 dgts
3.5% ± 5 dgts
Capacitance 0.01nF - 100mF 3% ± 5 dtgs (typical)
Frequency 9.999Hz - 99.99kHz 1.2% ± 5 dgts
Duty Cycle 10% - 90% 1.2% ± 2 dgts
Temperature -20.0°C - 1000°C
-4.0°F - 1832°F		 ±3.0 % of rdg ± 5°C
±3.0 % of rdg ± 9°F
Diode Test 0.3mA into 3.2V DC N/A
Power supply 3 x AAA V batteries Included
Dimensions 250 x 78 x 40 mm
Weight 350g

SL104 Specifications
Measurement Range Basic Accuracy
Irradiance 1400W/m² Typically within ± 5% of rdg or ± 1W/m²
Integrated Temperature Probe -10°C to 50°C (14°F to 122°F)
External Temperature Probe -30°C to 100°C (-22°F to 212°F)
Inclination Measurement -90° to 90° 0.1° Resolution
Compass Measurement 0° to 360° 1° Resolution
Power supply 4 x 1.5V AA Supplied
Dimensions 176(H) x 70(W) x 40(D) mm
Weight About 390g Including batteries
