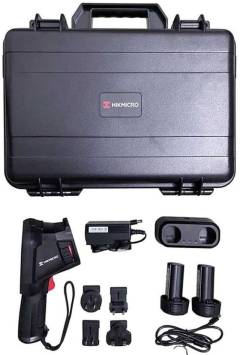

Hikmicro M31 Thermal Camera 384x288

Hikmicro M31 Thermal Camera 384x288

Product Code: HIKM31

Price
£2159.00 ex. VAT £2590.80 inc. VAT

In Stock


Add To Favourites
Detailed Description

HIKMICRO M31 handheld camera is specially designed for temperature measurement. It’s equipped with a 384 x 288 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.

Key Features:

  • High sensitivity thermal module with 384 x 288 resolution
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Supports multiple palettes
  • High-quality optical module with 8 MP resolution
  • Bi-spectrum image fusion, picture-in-picture preview
  • Wide temperature measurement range: -20°C ~650°C
  • High temperature measurement accuracy: Max (± 2°C/3.6°F, ± 2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
  • 640 x 480 resolution 3.5'' LCD touch display
  • Long-distance laser light supplement for thermography targets
  • LED light supplement makes the device a torch in required scenarios
  • Supports 1.0x to 8.0x continuous digital zoom

Hikmicro M3x Technical Specification

M30 M31
IR Resolution 384 x 288 (110,592 pixels)
SuperIR 768 x 576 (442,368 pixels)
NETD <35 mK (@ 25 °C, F#=1.0) <30mK (@ 25 °C, F#=1.0)
Image Frequency 30Hz
Detector Pitch 17 µm
Spectral Range 7.5 to 14 µm
Focal Length 9.7 mm 6.4mm
F-number F1.0
Field of View (FOV) 37.5° x 28.5° 41.1° x 30.5°
Spatial Resolution (IFOV) 1.75 mrad 1.87 mrad
Min. Focus Distance 0.2 m (0.65 ft) 0.1 m (0.32ft)
Focus Mode Manual Focus
Visual Camera 3264 x 2448 (8 MP)
Display 640 x 480 Resolution, 3.5" LCD Touch Screen
Screen Brightness Manual
Digital Zoom 1.0x to 8.0x continuous
Colour Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Focus Mode Palette Above/Below/Interval
Colour Alarm Above/Below/Interval/Insulation
Image Modes Thermal/Visual/Fusion/PIP/Blending
Object Temperature Range -20 °C to 550 °C (-4 °F to 1022 °F) Range -20℃ to 150℃ (-4°F to 302°F)
Range 100℃ to 650℃ (212°F to 1202°F)
Accuracy Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
Measurement Tools Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles, and 5 circle
Level and Span Mode Auto/Manual/1-Tap Touch-screen
Storage Media Removable 64 GB Micro SD Card
Image Storage Capacity Approx. 100,000 Images
Annotations Voice note: max. 60 seconds
Text note: max. 200 characters
Video Storage Capacity Approx. 300 hours
Video File Format MP4 video and radiometric video
Radiometric Infrared-Video Streaming (Compressed) Over UVC N/A
Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth Bluetooth 4.2
USB Interface USB Type-C
LED Light Yes
Laser Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
Battery Type Interchangeable and rechargeable Li-ion battery
Battery Operating Time Approx. 4 hours
Battery Charging Time Approx. 4 hours fully charged
Power Saving Mode Yes
Protection Level IP54
Drop Test Height 2 m (6.56 ft)
Safety IEC 61010-1
EMC EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3 EN 301489-1, EN 301489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN 61326-1
Vibration 1 g, IEC 60068-2-6 2g, IEC 60068-2-6
Shock 15 g, IEC 60068-2-27 25g, IEC 60068-2-27
Hikmicro Warranty 3 years for the full product, 10 years for the detector, and 2 years for the battery
Working Temperature Range -10°C to 50°C (-4°F to 122°F) -20°C to 50°C (-4°F to 122°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F) -40°C to 70°C (-40°F to 158°F)
Relative Humidity <95% non-condensing
Weight Approx. 660g (1.46 lb) Approx. 720g (1.59 lb)
Dimension 244 x 100 x 104 mm (9.6 x 3.9 x 4.1 in)
Tripod Mounting UNC ¼”-20
