Chauvin Arnoux L411 Current Recorder with Integral MiniFlex P01157180

Chauvin Arnoux L411 Current Recorder with Integral MiniFlex P01157180

Product Code: CHAL411

Price
£399.00 ex. VAT £478.80 inc. VAT

Available In 3-7 Days


Add To Favourites
Detailed Description

A cost-effective range of voltage and current recorders


Designed for the following applications:

  • Detection of intermittent problems
  • Recording the current required for the system to operate correctly
  • Resizing current transformers dedicated to metering

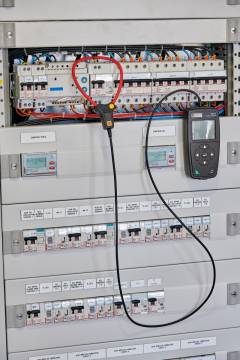

  • L411 For use on a feeder line or single electrical circuit.

Comes Supplied With:

  • USB-micro USB cable
  • USB mains adapter
  • Data transfer and management software
  • 3 batteries (AA or LR06)
  • Multi-language quick start guide
  • Test report and multi-language operating manual

Key Features:

  • Easy to set up and use
  • Large measurement storage memory
  • Measures and records up to 1500 Vdc
  • Remote current and voltage sensors
  • CAT III 1000V
  • CAT IV 600V
  • CAT III 1500V DC
  • IP 54
  • Wi-Fi Connectivity
  • USB Downloadable results

Datalogger Transfer

The software dedicated to data processing

  • Retrieval of recorded measurements: graphical representations or in the form of a table of values, with the option of exporting to Excel format.
  • Real-time monitoring of measurements.
  • Device configuration (selection of current sensor measurement range, network electrical frequency, modification of device access passwords, etc.).

Our devices act as remote sensors for measuring voltage and current. This means they can be used in a number of applications:

  • WiFi The recorders have 2 Wifi operating modes. They can be connected to the company’s IT network via a server. They can be addressed directly by a PC or smartphone.
  • IRD DataView® Synch A secure server is at your disposal so that you can consult your data from anywhere in the world.
  • USB A USB connection allows you to configure or download data, but above all to take control of a device in any circumstance.
  • Embedded web server for operation with Android and iOS Wi-Fi enabled instruments incorporate a web server to allow control and display via a web browser. Main features of the web server
  • Real-time display
  • Trend recording
  • Configuration (included for language with a flag)

Model L411 L412 L461
1 Measurement channel ⬛ ⬛ ⬛
2 Measurement channels ⬛
Current: 3000A AC miniflex captive sensor ⬛
Current: Multiple AC current sensor technology ⬛
Voltage: 1000V AC and 1500v DC measurement ⬛
Single-phase electrical distribution system ⬛ ⬛ ⬛
Single and two-phase electrical distribution system ⬛

Model

 L411 L412 L461
Measurements
Number of Channels 1 2 1
Range From 0.5 to 3000 A ac Depending on sensor(s) From 10 V to 1200 Vac / 1700 Vdc
Frequency Yes
Description
Display LCD backlit
Memory Size 8GB
Aquisition Speed 1 measurement / s
Aggregation 1 to 60 min
Communication USB, Wifi, Web server, IRD server DataView Synch
Power Supply 3 piles AA, ou USB
Battery Life 3 days recording without Wi-Fi
Shock-proof Sheath Option
Dimensions 147 x 34 x 72 mm 177 x 34 x 72 mm 178 x 34 x 72 mm
Weight 340 g approx. 300 g approx.
Sensor Ø 100mm / 350mm cable length 1,2 m
Operating Temperature -20°C to 50°C
Protection IP54
Electrical Safety 600 V CAT IV 1000 V CAT III 600 V CAT IV 1000 V CAT III 600 V CAT IV 1000 V CAT III 1500 Vdc CAT III
