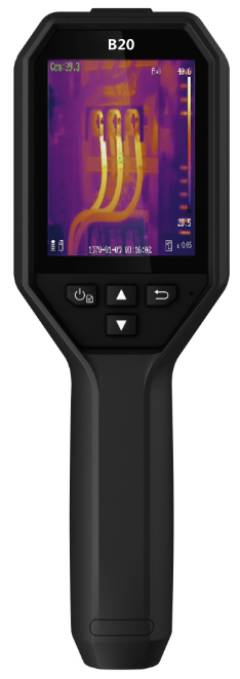

Hikmicro B20S Handheld Thermogrophy Camera

Hikmicro B20S Handheld Thermogrophy Camera

Product Code: HIKB20S

Price

£381.75 ex. VAT £458.10 inc. VAT

In Stock

Add To Favourites
Detailed Description

HIKMICRO B20S is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.

HIKB20S_Datasheet.pdf

Key Features:

IR resolution: 256 x 192 (49 152 pixels), 2MP Visual Resolution
Support SuperIR image enhancement technology
NETD : ＜40 mK (@ 25 °C,F#=1.0)
Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
25 Hz image frequency
3.2" 480 × 640 Resolution LCD Screen
Up to 6 hours continuous running

Technical Specification:

Infrared Image
IR Resolution	256 x 192 (49,152 pixels)
SuperIR	Yes, on captured images and live view
Detector Pitch	12 μm
Spectral Range	7.5 - 14 μm
NETD	< 40 mK (@25°C), F#=1.0
Focal Length	3.6mm
Field of View (FOV)	37.2° x 50.0°
Image Frequency	25 Hz
Focus	Focus Free
Spatial Resolution (IFOV)	3.3mrad
F-number	F1.0
Minimum Focus Distance	0.3 m (0.98 ft)
Image Display
Visual Camera	1600 x 1200 (2 MP)
Display	480 x 640 Resolution, 3.2' LCD Screen
Colour Alarm	Above alarm
Colour Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
Image Modes	Thermal/Optical/Fusion/PIP
Measurement and Analysis
Object Temperature Range	-20 °C to 550 °C (-4 °F to 1022 °F)
Accuracy	Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools	Centre Spot, Hot Spot, Cold Spot User-definable: 3 spots
Level and Span Mode	Auto/Manual
Data Storage and Communication
Storage Media	Built-in 16G eMMC (user available storage space is less than the nominal capacity)
Image Storage Capacity	Approx. 35,000 Images
Image File Format	Radiometric JPEG
General
Wi-Fi	802.11 b/g/n (2.4GHz)
USB Interface	USB Type-C
LED Light	Yes
Power Supply	USB-C (5V/2A)
Battery Type	Rechargeable Li-ion Battery
Battery Operating Time	Approx. 6 hours
Battery Charging Time	Approx. 3 hours fully charged
Protection Level	IP54
Drop Test Height	2 m (6.56 ft)
Working Temperature Range	-10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature Range	-20 °C to 60 °C (-4 °F to 140 °F)
Relative Humidity	< 95% non-condensing
Weight	Approx. 380 g (0.84 lb)
Dimension	221.7 mm x 73.5 mm x 123.8mm (8.73 x 2.89 x 4.87 in)
Tripod Mounting	UNC ¼”-20
