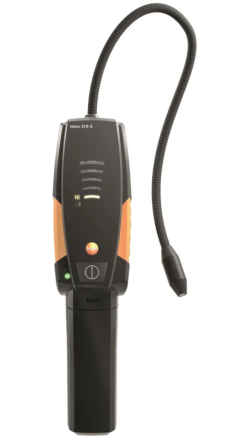

testo 316-3 - Refrigerant Leak Detector 0563 3163

testo 316-3 - Refrigerant Leak Detector 0563 3163

Product Code: TES05633163

Price
£182.75 ex. VAT £219.30 inc. VAT

In Stock


Add To Favourites
Detailed Description

Leak detection in refrigeration engineering? Sure thing! The testo 316-3 refrigerant leak detector can detect all the most common cooling agents and locate even the smallest leaks. Complies with all important regulations and norms. One piece of kit you as a refrigerant technician won’t want to be without.

Key Features:

  • Can detect all the most common cooling agents: CFCs, HFCs, FCs
  • Highly sensitive – detects even the smallest leaks
  • Easy-to-use one-button operation
  • Complies with specifications for F gases regulations, SAE Code J1627 and DIN EN 14624:2012 standard

The testo 316-3 refrigerant leak detector is one piece of kit that you as a refrigerant technician just won`t want to be without. The handheld leak detector can detect all the most common cooling agents. And the smallest leaks. Comes with an automatic zero setting that also enables you to locate leaks in contaminated rooms.

Important Calibration Information

This instrument comes supplied with a ‘manufacturers calibration protocol’ please note this is NOT a traceable calibration certificate. A calibration protocol is a statement of values or tolerances within the desired range that the instrument was reading at the point of manufacture. A calibration protocol may not be an acceptable statement of accuracy according to industry accreditation bodies.
If you require a traceable calibration certificate accredited to your business, please select this option where applicable from the drop-down field below.

testo 316-3 leak detector - benefits at a glance

  • Can detect all common cooling agents: CFCs, HFCs, FCs
  • Highly sensitive ( < 4 g/a - 1g/a according to DIN EN14624:2012 standard) - can detect even the smallest leaks
  • Ready for use - there`s no need to select cooling agent characteristics first
  • Automatic zero setting - can detect leaks in rooms that are already contaminated
  • Visual and audible alarm which are activated when a leak is detected
  • Quick and easy sensor change
  • Complies with specifications for F gases regulations, SAE norm J1627 and DIN EN 14624:2012 standard

Sensor change by customer

The simple design of the testo 316-3 enables the sensor to be changed in just a few seconds and means the sensor is always ready for use.

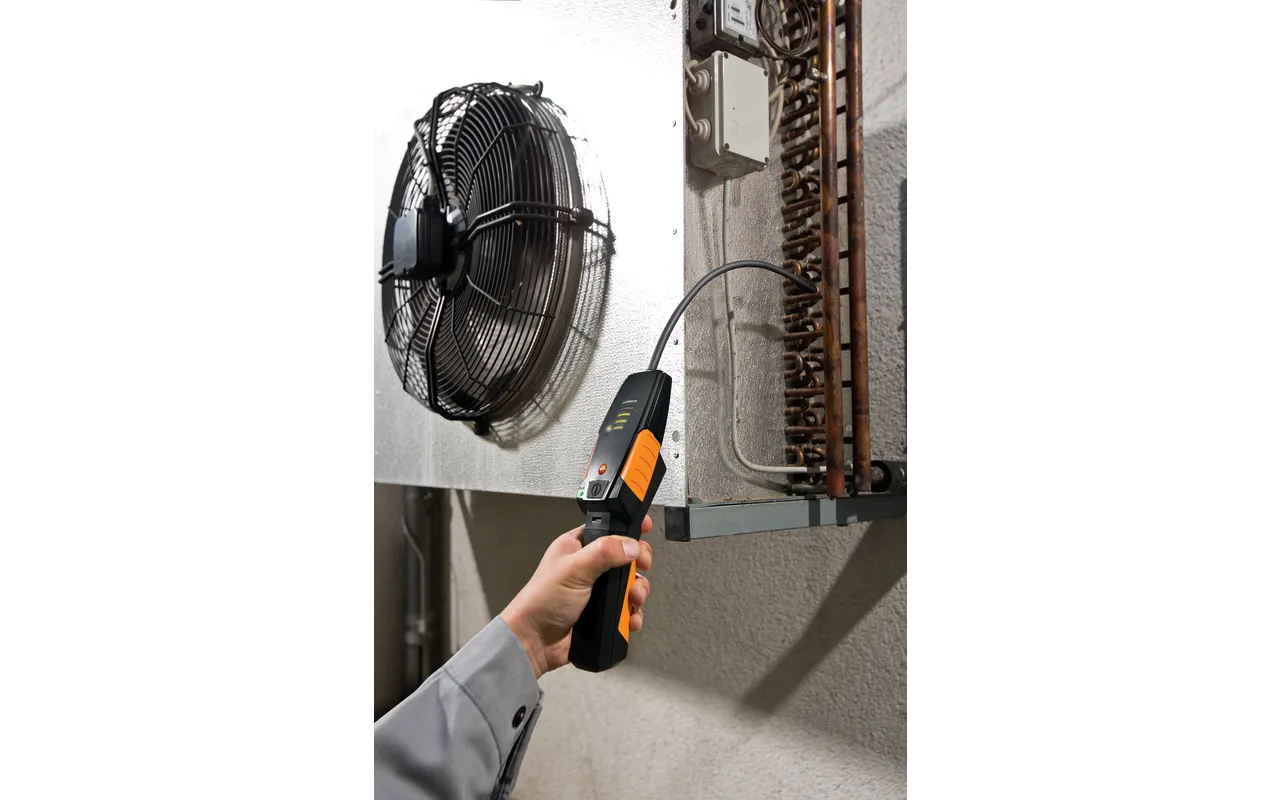

Tightness testing of refrigeration systems

The testo 316-3 meets all the requirements of the F gases regulation thanks to the high sensitivity of 4 g/a. This means you can find every leakage – no matter whether it involves an R22, R134a, R410a or another refrigerant.

Comes Supplied With:

  • testo 316-3 Refrigerant Leak Detector
  • Case
  • Batteries
  • Filter
  • Calibration protocol

Operating humidity
20 to 80 %RH
Weight
500 g (incl. batteries)
Dimensions
270 x 60 x 61 mm
Operating temperature
-18 to +50 °C
Product colour
Black
Detectable
R22; R134a; R404A; R410A; R507; R438A; and all CFCs, HFCs, and HCFCs
Life-time sensor
Approx. 80 to 100 h (corresponds to approx. 1 year)
Sensitivity
4 g/a (0.15 oz/a)
Standards
EN 14624:2012; SAE J1627
EU-/EG-guidelines
2004/108/EG
Battery type
2 x D
Battery life
16h permanent operation
Storage temperature
0 to +50 °C
